Portable Hydraulic Power pack units industrial

  Hydraulic power pack units gas or diesel engines.  Kits to Build your own ( reservoirs, engine pump combinations, control valves, filters flow controls call )

•   Skid mounted hy power units . ( Movable with fork lift )
•   Stationary Industrial portable Hydraulic Power Units and Mobile industrial trailer mounted units are  tow able to job site 2" ball hitch or pintail hook .
•   All of our units are Portable Hy power pack units are power by Honda GX  or Kohler engines .
•   Single cylinder to the largest V Twin Honda a very reliable power source.
•   Single stage pumps and 2 stage pumps .
•   Prince valves Large return filter, suction strainer in tank, electric start engines or pull star.

•   CARB Approved EPA Fuel tanks .

---



 For 12 volt  DC hydraulic pumps click hear



Kits to build your own click here.

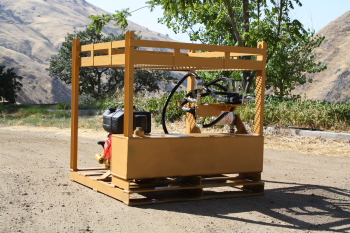

     Above  27 Gallon portable skid units are power by 13 HP GX series Honda Engine.

   All steel frame fork lift model

   Options

• Electrical start .

• Trailer mount. For all Hy portable power pack gas & Diesel units

• Various Hy Valve Combinations .

• Diesel Engines







---





  Winch Trailer unit 10 GPM 15 gallon tank 14 Hp Kohler engine or Honda with option of elect start with battery.



---



  Portable Hy power pack units skid or optional  trailer mounted  with GX series Honda Gas Engines or Kohler.

Model	Engine  Honda	Engine RPM	Pump Type	Pump  GPM	Pressure	Reservoir	Ship WT.
06H13	389 GX	3450	single/stage	6 GPM.	3000 psi	15  Gallon
08H13	389 GX	3450	single/stage	8  GPM	2200 psi	15  Gallon
10H13	389 GX	3450	single/stage	10 GPM	1800 psi	15  Gallon
14H13	389 GX	3450	single/stage	14  GPM	1200 psi	20   Gallon
22H13	389 GX	3450	*Two /stage	22  GPM	3000 psi	27   Gallon	600 Lbs



   *Two Stage Pumps are Hi-Low Pumps-- 22 GPM untill approx 600 PSI. then they shift to 6 GP

---

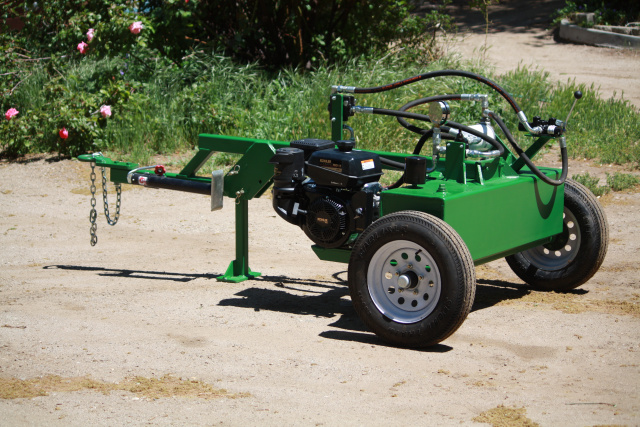

Trailer mount units Honda





   Unit above Kohler 14 Hp Engine , Adjustable Flow control valve, Double D Tent motor control valve and pressure relief.

---





   1-661-248-5270   Phone



---

    V Twin GX Series 690 Honda engine

Skid Mounted













---





















MODEL	ENGINE Honda	ENGINE RPM.	PUMP	PUMP GPM.	PRESSURE	RESERVOIR	SHIP WT.
08EZ690	GX 690	3450	Single/Stage	8  GPM	3000 PSI	25 Gallon
10EZ690	GX 690	3450	Single/Stage	10 GPM	3000 PSI	25 Gallon
12EZ690	GX 690	3450	Single/Stage	12  GPM	2500 PSI	25 Gallon
15EZ690	GX 690	3450	Single/Stage	15  GPM	2000 PSI	25 Gallon
22EZ690	GX 690	3450	TWO/Stage*	22 GPM	3000 PSI	27 Gallon
28EZ690	GX 690	3450	TWO/Stage*	28 GPM	3000 PSI	27 Gallon



   *Two Stage Pumps are Hi-Low Pumps at approx 600 psi A 22 GPM will shift to 6 GPM & A 28 to 7 Gallons.

• Honda Engine .

• Pressure Gauge.

• Inline Relief Valve Adjustable.

• H Oil Filter .

• All Steel fork lift access pallett.

• Electrical Start Engine

---

Kholer Power Unit 38 HP Up 24 Gallon Per Min.

Engine 38 HP Kohler	Pump Size Single Stage	PSI	RPM	Hydraulic Reservoir	Weight
EZ- K 38 Ko- 12-  27	12  GPM.	3000	3400 RPM	27 Gallon	800  +
EZ- K 38 Ko- 15-  27	16  GPM	2500		27 Gallon	800 +
EZ- K 38 Ko-  20 -27	20 GPM	2000		27 Gallon	800 +
EZ- K 38 Ko-  12 -27	24 GPM	1500		27 Gallon	800 +



• H Oil Filter

• Pressure Gauge.

• Inline Relief Valve.

• Skid Mount or Engine on on top tank.

• Oil Level site gauge.

• 5 Gallon fuel carb fuel tan

• Oil Cooler with 12 Volt Fan.                           $  595.00

• H  Valves various combinations                       Call.



---

Up to 70 Gallon reservoir.

Industrial Hy tanks

Oil Coolers









  Portable Honda  Hydraulic power pack units gas
