Hydraulic Spool control valves By Prince  unless Noted.

Prince  Auto cycle valve

RD523MMEE5A4B1

     This valve is used to automatically cycle a hydraulic cylinder-out, back, stop-. When both handles are pulled back the cylinder will extend out. When it reaches full extension, the first spool will go into neutral and begin retracting.  When ram makes  full retraction, the second spool will kit out and the cycle is complete .  To start the next cycle pull both handles back



This Auto Cycle Valve is convertible to a power beyond with  a optional conversion plug

• G.P.M        25

• WT.           23 lbs

• 3/4" in out 3/4" working  NTP

 Our Price $ 460.95          24 #

                                                             Auto-Cycle Manual


---

2

AUTO CYCLE CONTROL VALVE WITH POWER BEYOND SAE PORTS



------------------------------------------------------------------------------------------------------------------------------------------------------

3

Prince  Auto Cycle Valve



RD523MMEE5A1A1

This valve is used to automatically cycle a hydraulic cylinder-out, back, stop-. When both handles are pulled back the cylinder will extend out. When it reaches full extension, the first spool will go into neutral and begin retracting.  When ram makes  full retraction, the second spool will kit out and the cycle is complete .  To start the next cycle pull both handles back

 Not a Power beyond valve Down stream valve.

 Price $ 460.95            23#

3/4" in & out NTP 3/4" NTP working port

            Auto-Cycle Manual click here

4










          Prince  Control Valve RD522ECAA5A4B1



     4 Way 3 Position open center motor spool valve  Power beyond valve



    This valve can be used to control a bi-rotational motor or a double acting cylinder. In  neutral the work ports are open to the return. This allows a cylinder to drift or a motor to  coast to a stop. In neutral the oil goes through the open center passages to the next spool  of multi-spool valve



3/4" in 3/4' NTP out  1/2" working ports NTP ( pipe thread



Price              23#



---

5









 Prince LSR-3060-3  Rapid Extend wood splitter valve







The Prince LSR-3060-3 Log Splitter valve has a fast   ( RAPID EXTEND HIGH SPEED MODE FOR LOG SPLITTERS )



Has average of 50% reduction in amount of time it takes to get a fully retracted cylinder



extended.  Built to reduce system cost by working with a less expensive single stage



pump. When splitting wood and the need for that extra splitting  force , the LSR -3060-3



will allow the user to manually shift from high speed mode to high splitting force  mode.



Advantage of the LSR eliminates the need for a Hi-Lo  pump, reduces the overall cost of building  a typical wood splitter.



      Up to 25 GPM from a inlet flow of 4 Gallon per min pump



     Pressure release detent on return stroke



NOT FOR USE WITH TWO STAGE PUMPS  HI-Lo



       1/2" in 1/2" NTP outlet ports working ports 3/4" NTP      11 #



LSR -3060-3  Price $ 314.98



   Hi, a few weeks ago I purchased a Prince LSR-3060 2-speed valve from you, with the intention of using it on a tractor(~7gpm) for a 3pt mounted splitter.  At the time you had asked for an update on how it ended up working out.
    Having finished the splitter I can report it works very well in controlling 2 speeds. The lever has 2 stops for extension, pull it all the way out and the ram moves at about double speed, once it hits resistance release the lever and pull it again to the slow stop (about halfway for full force). However, what I think is really cool is that after contacting a log and getting the initial split at the slow speed, you can then pull the lever all the way out again and split through the full length of the log at the faster speed thus saving time.

Thanks
Josh





---



6







               Prince Log splitter DeTent valve  Made in the U.S.A



     3/4" in and 3/4" NTP out  with 3/4" NTP working ports they are the large out let ports not the 1/2" ports  25 G.PM 2750 P.S.I

          LS-3000-2    Our price  $  171.00           11 #



     3/4" NTP in and 3/4"  NTP out  with 1/2"  NTP working ports      25 G.PM 2750 P.S.I

         LS 3000 1  Price  $ 171.00         11 #

---





8

         LS-3060-2





---



9

LS-3060-1

---



10

LS-3040-1

LS-3040-1

4-way/3-pos  with 3 Pos Detent

3/4" In 3/4" out let ports  1/2 working ports

Price  $ 103.00     11#

---

11





     Part  No.     RD513CE5A4B1 30 G.PM  3000 P.S.I

 D-Tent log splitter valve with power beyond port 3/4" NTP  in and out  with 3/4"  NTP working ports 30 GPM and adjustable to 3000 PSI for Big pumps

   Back Order out off stock.        15 #





---

12

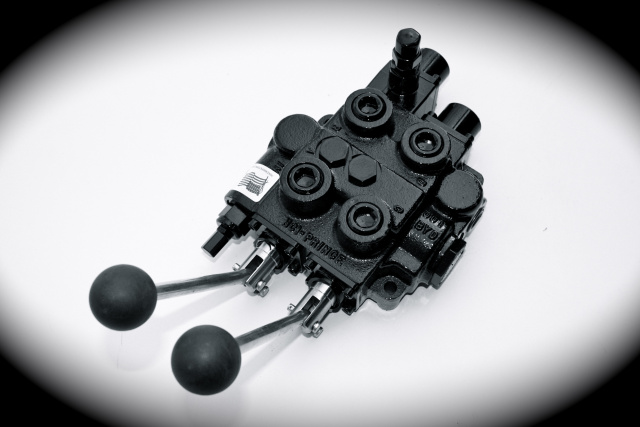

       Prince Control Valve- RD522CCAA5A4B1

2 Spool Valve- 25 GPM -4- way/3-pos-spring center both spools

Great valve for log lift and 4-way wedge

 3/4" in and out ports NTP

 1/2" working ports NTP

 Shipping weight 23 LBS

 Our  Price   $ 350.00

                                                 Catalog Pages

---

13



Prince Control Valve- RD525CCAA5A4B1

2 Spool Valve- 25 GPM -4- way/3-pos-spring center both spools

 SAE # 12  in and out ports

 SAE  # 12 working ports

 Power beyond

 Price  $ 350.00

 Shipping weight      23 LBS



---

14

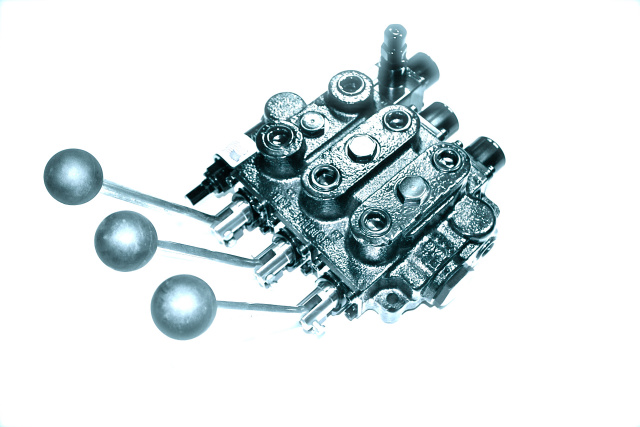

                             RD532CCCAAA5A4B1

25 Gpm 3000 PSI Directional control Valve, three spool

All spools 4-Way/3-Pos Spring Center

Closed Center And Power Beyond Capability

3000 PSI Max Pressure

U.S.A

Price      $ 520.00                                              34#



---

15





     Part  No.     RD512CA5A4B1 30 G.PM  3000 P.S.I

1- Spool  4W / 3P Tandem spring center  3/4 NTP  in & out 1/2 Working ports NTP.

Closed Center And Power Beyond Capability

 Our price $225.00         15#



---

16



     Part  No.     RD513CA5A4B1 30 G.PM  3000 P.S.I

1- Spool  4W / 3P Tandem spring center 3/4" NTP in & out 3/4" NTP Working ports

Closed Center And Power Beyond Capability

 Our price $ 225.98       15#



---

17

 RD 2500Series

• Single 4 Way sool is used to control a doubling acting cylinderor bi rotational motor.
• 4 way motor spool allows a cylinder to floatin the neutral position or mortor to free wheel
• 3-way spool is used to control a single acting cylinderor a unidrectional mortor
• Adjustable ball spring relief load check
• Max 20 GPM, 3000 PSI
• 1500 PSI @ 12 GPM

RD-2575-T4-EDA1

  4 way 3 Pos Tandem  - 3Pos D Tent   -   3/4" in 3/4" Out - With 1/2" Working Ports  -     Price $ 96.00

---

18

RD-2555-T4- EAS1

  4 Way 3 -Pos Tandem - Spring center to neutral -  3/4" in 3/4" Out - 1/2" working Ports -

Price $ 96.00

---

     4- Way, 3 Pos. Motor  -   Spring Center To Neutral - 3/4" In 3/4" - Out - 1/2" NTTF Working Ports

Price $ 96.95

---

20

RD-2575-M4-EDA1

        4- Way, 3 Pos. Motor  -  3-Pos. Detent - 3/4" In 3/4" - Out - 1/2" NTTF Working Ports

Price $ 96.95

---

21

DUMP VALVE



  Valve on return stroke will open and let fluid bypass valve helps on over load of valve & heating of oil.

30 GPM  $ 185.95

65 GPM  $ 276.95

Shown with all the options hose , fittings and LS 3000 2

Note the DUMP valve is not a Prince.



---
